PRODUCTS |
INVERTER GENERATOR |
REVENTON |

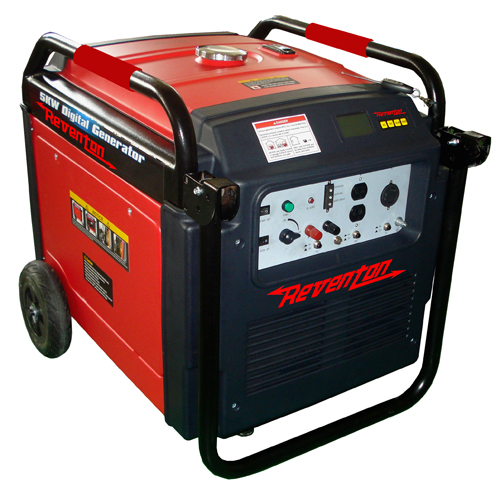

RV5000i |
|
|
|
Generator Set |
Description |
4 Stroke 5000W Inverter Generator |
Rated Voltage |
240 V |
120 V |
Rated Frequency |
50 Hz |
60 Hz |
Rated Power |
4500 W |
Max Power |
5000 W |
Rated Current |
18.8 A |
37.5 A |
DC Output |
12V 8A(Optional) |
Rated Speed |
3600 RPM |
Phase |
Single Phase |
Power Factor(cosφ) |
1.0 |
Output Wave Type |
Pure Sine Wave |
Fuel Tank Capacity |
20.0 Liters |
5.3 Gallons |
Oil Tank Capacity |
6.0 Liters |
1.6 Gallons |
Run Time |
6.0 Hours |
Structure |
Silent |
Noise Level @ 7m |
60-68 dBA |
Engine |
Model |
G180F |
Bore X Stroke |
80 mm X 58 mm |
Displacement |
291 cc |
Starting System |
Electric Start with Remote Control |
Type |
4 Stroke, Single Cylinder, Air-Cooled, OHV |
Fuel |
Automobile Unleaded Gasoline |
Lube |
SAE 15W/40 |
Dimension(LXWXH) |
860X610X760 mm |
N.W/G.W |
85.0/90.0 kgs |
Piece per Carton |
1 pc/ctn |
Container Loading Qty 20GP |
72 |
Container Loading Qty 40HQ |
153 |
|
|
