| PRODUCTS |
| GASOLINE GENERATOR |
| SUNASTRA |

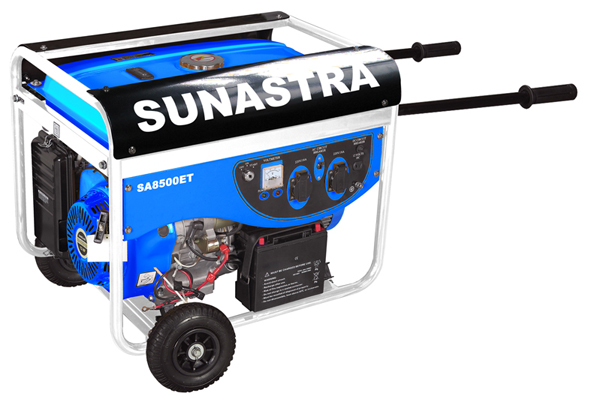

| SA8500ET |
| |
 |
| |
| SA8500ET |
| Generator Set |
Description |
4 Stroke 6000W Generator |
| Rated Voltage |
240 V |
120 V |
| Rated Frequency |
50 Hz |
60 Hz |
| Rated Power |
5000 W |
5500 W |
| Max Power |
5500 W |
6000 W |
| Rated Current |
20.8 A |
45.8 A |
| DC Output |
12V 8A(Optional) |
| Rated Speed |
3000 RPM |
3600 RPM |
| Phase |
Single Phase |
| Power Factor(cosφ) |
1.0 |
| Type |
AVR(Automatic Voltage Regulator) |
| Fuel Tank Capacity |
25.0 Liters |
6.6 Gallons |
| Oil Tank Capacity |
6.5 Liters |
1.7 Gallons |
| Run Time |
7.4 Hours |
5.5 Hours |
| Structure |
Open Frame |
| Engine |
Model |
G188F |
| Max Power |
9.8 KW(13.0 HP)/3600 rpm |
| Bore X Stroke |
88 mm X 64 mm |
| Displacement |
389 cc |
| Compression Rate |
8.5:1 |
| Starting System |
Electric Start |
| Ignition System |
T.C.I. |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, OHV |
| Fuel |
90# Automobile Unleaded Gasoline |
| Lube |
SAE 10W/30 |
| Dimension(LXWXH) |
705X535X585 mm |
| N.W/G.W |
85.0/90.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
140 |
| Container Loading Qty 40HQ |
280 |
|
|
