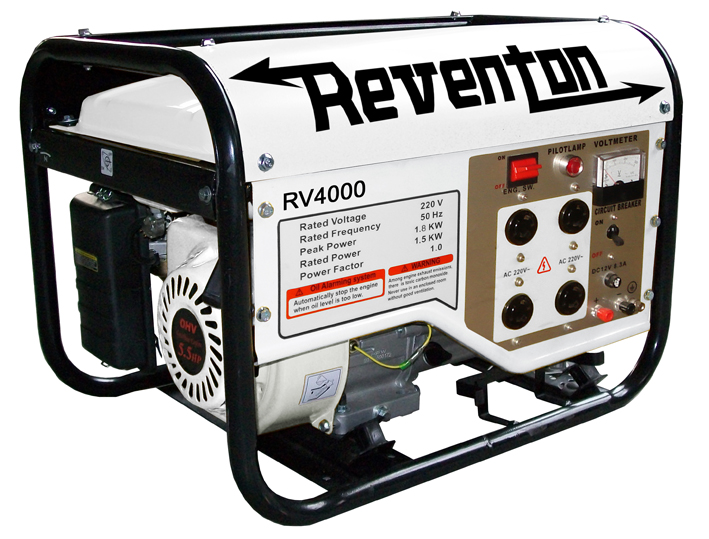

RV4000
Generator Set	Description	4 Stroke 2000W Generator
	Rated Voltage	240 V	120 V
	Rated Frequency	50 Hz	60 Hz
	Rated Power	1500 W	1700 W
	Max Power	1800 W	2000 W
	Rated Current	6.3 A	14.2A
	DC Output	12V 8A(Optional)
	Rated Speed	3000 RPM	3600 RPM
	Phase	Single Phase
	Power Factor(cosφ)	1.0
	Type	AVR(Automatic Voltage Regulator)
	Fuel Tank Capacity	15.0 Liters	4.0 Gallons
	Oil Tank Capacity	0.6 Liters	0.16 Gallons
	Run Time	17.0 Hours	12.8 Hours
	Structure	Open Frame
Engine	Model	G168F
	Max Power	4.1 KW(5.5 HP)/3600 rpm
	Bore X Stroke	68 mm X 45 mm
	Displacement	163 cc
	Compression Rate	8.5:1
	Starting System	Recoil Start
	Ignition System	T.C.I.
	Type	4 Stroke, Single Cylinder, Air-Cooled, OHV
	Fuel	90# Automobile Unleaded Gasoline
	Lube	SAE 10W/30
Dimension(LXWXH)		605X440X440 mm
N.W/G.W		39.0/41.5 kgs
Piece per Carton		1 pc/ctn
Container Loading Qty 20GP		240
Container Loading Qty 40HQ		580
