| PRODUCTS |
| GASOLINE GENERATOR |
| KENASTRA |

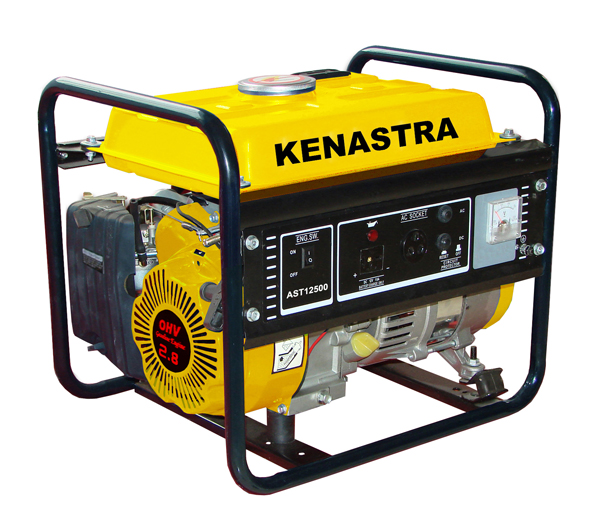

| AST12500 |
| |
 |
| |
| AST12500 |
| Generator Set |
Description |
4 Stroke 1000W Generator |
| Rated Voltage |
240 V |
120 V |
| Rated Frequency |
50 Hz |
60 Hz |
| Rated Power |
900 W |
1000 W |
| Max Power |
1100 W |
1200 W |
| Rated Current |
3.8 A |
8.3 A |
| DC Output |
12V 8A(Optional) |
| Rated Speed |
3000 RPM |
3600 RPM |
| Phase |
Single Phase |
| Power Factor(cosφ) |
1.0 |
| Type |
Brushless |
| Fuel Tank Capacity |
5.5 Liters |
1.5 Gallons |
| Oil Tank Capacity |
0.45 Liters |
0.12 Gallons |
| Run Time |
8.0 Hours |
6.0 Hours |
| Structure |
Open Frame |
| Engine |
Model |
G154F |
| Max Power |
2.1 KW(2.8 HP)/3600 rpm |
| Bore X Stroke |
54 mm X 38 mm |
| Displacement |
87 cc |
| Compression Rate |
6:1 |
| Starting System |
Recoil Start |
| Ignition System |
T.C.I. |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, OHV |
| Fuel |
Automobile Unleaded Gasoline |
| Lube |
SAE 10W/30 |
| Dimension(LXWXH) |
465X365X380 mm |
| N.W/G.W |
25.0/27.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
480 |
| Container Loading Qty 40HQ |
990 |
|
|
