| PRODUCTS |
| GASOLINE GENERATOR |

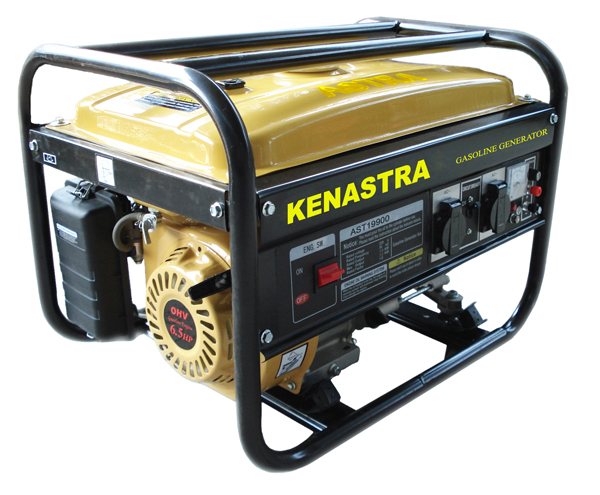

| KENASTRA |
| AST19900 |
| |
 |
| |
| AST19900 |
| Generator Set |
Description |
4 Stroke 3000W Generator |
| Rated Voltage |
240 V |
120 V |
| Rated Frequency |
50 Hz |
60 Hz |
| Rated Power |
2500 W |
2800 W |
| Max Power |
2800 W |
3000 W |
| Rated Current |
10.4 A |
23.3 A |
| DC Output |
12V 8A(Optional) |
| Rated Speed |
3000 RPM |
3600 RPM |
| Phase |
Single Phase |
| Power Factor(cosφ) |
1.0 |
| Type |
AVR(Automatic Voltage Regulator) |
| Fuel Tank Capacity |
15.0 Liters |
4.0 Gallons |
| Oil Tank Capacity |
0.6 Liters |
0.16 Gallons |
| Run Time |
8.3 Hours |
6.3 Hours |
| Structure |
Open Frame |
| Engine |
Model |
G168F-1 |
| Max Power |
4.9 KW(6.5 HP)/3600 rpm |
| Bore X Stroke |
68 mm X 54 mm |
| Displacement |
196 cc |
| Compression Rate |
8.5:1 |
| Starting System |
Recoil Start(Electric Start Optional) |
| Ignition System |
T.C.I. |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, OHV |
| Fuel |
90# Automobile Unleaded Gasoline |
| Lube |
SAE 10W/30 |
| Dimension(LXWXH) |
605X440X440 mm |
| N.W/G.W |
43.0/45.5 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
240 |
| Container Loading Qty 40HQ |
580 |
|
|
