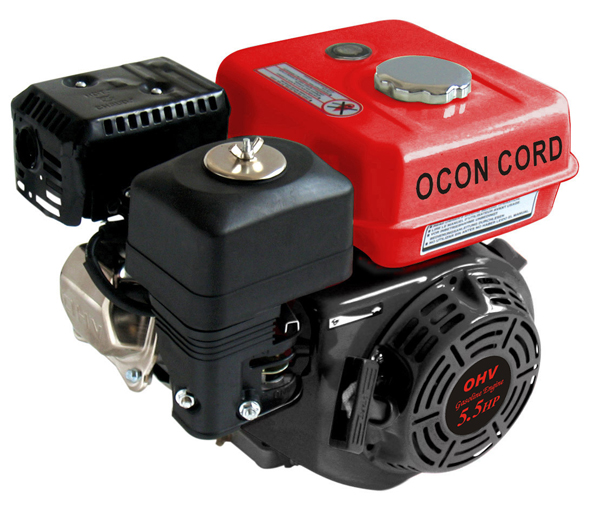

| CN168F |
| |
 |
| |
| CN168F |
| Engine Type |
4 Stroke, Single Cylinder, Air-Cooled, OHV, Gasoline Engine |
| Bore X Stroke |
68 mm X 45 mm |
| Displacement |
163 cc |
| Compressor Ratio |
8.5:1 |
| Max Output |
5.5 HP/3600 rpm |
| Max Torque |
10.5 N•m/2500 rpm |
| Ignition System |
None Contact Transistorized Ignition(T.C.I.) |
| Fuel |
90# Automobile Unleaded Gasoline |
| Fuel Tank Capacity |
3.6 L(1 Gallons) |
| Fuel Consumption Rate |
≤ 395 g/KW•H |
| Lube |
SAE 10W/30 |
| Lubrication Oil Tank Capacity |
0.6 L(0.16 Gallons) |
| Starting System |
Recoil Start |
| Dimension |
315X365X335 mm |
| Net Weight |
16.0/17.5 kgs |
| Piece per Carton |
1 pc/ctn |
|
|
