| PRODUCTS |
| ENGINE |
| GASOLINE ENGINE |

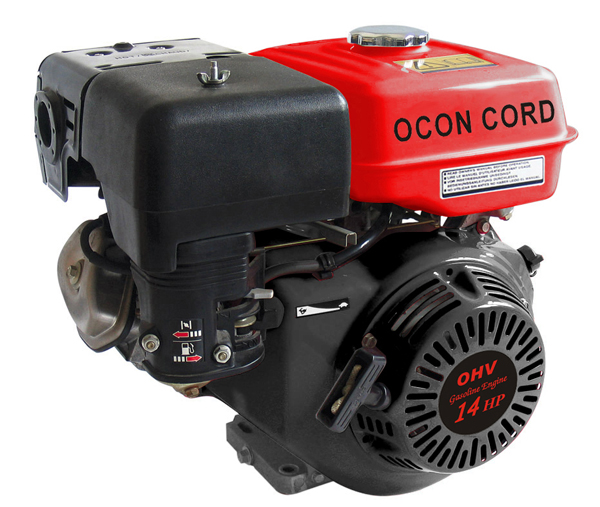

| CN190F |
| |
 |
| |
| CN190F |
| Engine Type |
4 Stroke, Single Cylinder, Air-Cooled, OHV, Gasoline Engine |
| Bore X Stroke |
90 mm X 64 mm |
| Displacement |
420 cc |
| Compressor Ratio |
8:1 |
| Max Output |
14.0 HP/3600 rpm |
| Max Torque |
28 N•m/2500 rpm |
| Ignition System |
None Contact Transistorized Ignition(T.C.I.) |
| Fuel |
90# Automobile Unleaded Gasoline |
| Fuel Tank Capacity |
6.5 L(1.7 Gallons) |
| Fuel Consumption Rate |
≤ 395 g/KW•H |
| Lube |
SAE 10W/30 |
| Lubrication Oil Tank Capacity |
1.1 L(0.3 Gallons) |
| Starting System |
Recoil Start(Electric Start Optional) |
| Dimension |
405X450X445 mm |
| Net Weight |
31.0/33.0 kgs |
| Piece per Carton |
1 pc/ctn |
|
|
