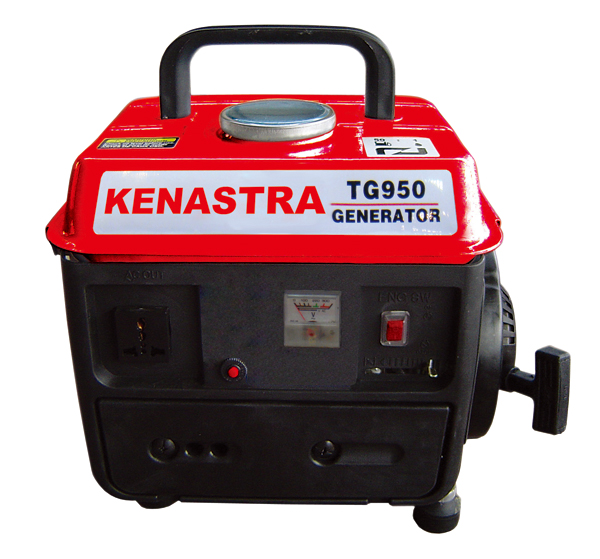

TG950
Generator Set	Description	2 Stroke 950 Generator
	Rated Voltage	240 V	120 V
	Rated Frequency	50 Hz	60 Hz
	Rated Power	650 W	800 W
	Max Power	800 W	900 W
	Rated Current	3.0 A	6.7 A
	DC Output	12V 8A(Optional)
	Rated Speed	3000 RPM	3600 RPM
	Phase	Single Phase
	Power Factor(cosφ)	1.0
	Type	Brushless
	Fuel Tank Capacity	4.2 Liters	1.1 Gallons
	Run Time	7.0 Hours	5.2 Hours
	Structure	Portable
Engine	Model	G1E45F
	Max Power	1.5 KW(2.0 HP)/3600 rpm
	Bore X Stroke	45 mm X 40 mm
	Displacement	63 cc
	Compression Rate	7:1
	Starting System	Recoil Start
	Ignition System	C.D.I.
	Type	2 Stroke, Single cylinder, Air cooled
	Fuel	Automobile Unleaded Gasoline
	Lube	ERC 2 stroke engine oil
	Lubricating System	Gas to Oil: 50:1
Dimension(LXWXH)		375X315X330 mm
N.W/G.W		20.5/22.5 kgs
Piece per Carton		1 pc/ctn
Container Loading Qty 20GP		750
Container Loading Qty 40HQ		1680
