| PRODUCTS |
| GASOLINE GENERATOR |
| KENASTRA 2 STROKE |

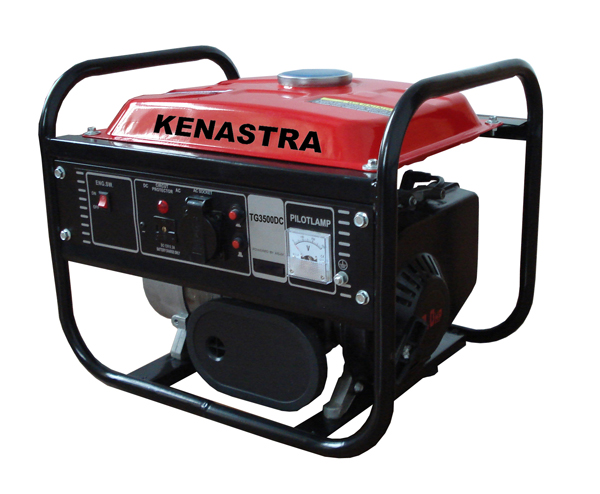

| TG3500DC |
| |
 |
| |
| TG3500DC |
| Generator Set |
Description |
2 Stroke 950 Generator |
| Rated Voltage |
240 V |
120 V |
| Rated Frequency |
50 Hz |
60 Hz |
| Rated Power |
650 W |
800 W |
| Max Power |
800 W |
900 W |
| Rated Current |
3.0 A |
6.7 A |
| DC Output |
12V 8A |
| Rated Speed |
3000 RPM |
3600 RPM |
| Phase |
Single Phase |
| Power Factor(cosφ) |
1.0 |
| Type |
Brushless |
| Fuel Tank Capacity |
5.5 Liters |
1.5 Gallons |
| Run Time |
9.0 Hours |
6.5 Hours |
| Structure |
With Frame |
| Engine |
Model |
G1E45F |
| Max Power |
1.5 KW(2.0 HP)/3600 rpm |
| Bore X Stroke |
45 mm X 40 mm |
| Displacement |
63 cc |
| Compression Rate |
7:1 |
| Starting System |
Recoil Start |
| Ignition System |
C.D.I. |
| Type |
2 Stroke, Single cylinder, Air cooled |
| Fuel |
Automobile Unleaded Gasoline |
| Lube |
ERC 2 stroke engine oil |
| Lubricating System |
Gas to Oil: 50:1 |
| Dimension(LXWXH) |
465X365X380 mm |
| N.W/G.W |
25.0/27.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
480 |
| Container Loading Qty 40HQ |
990 |
|
|
