| PRODUCTS |
| DIESEL GENERATOR |
| OCONCORD |

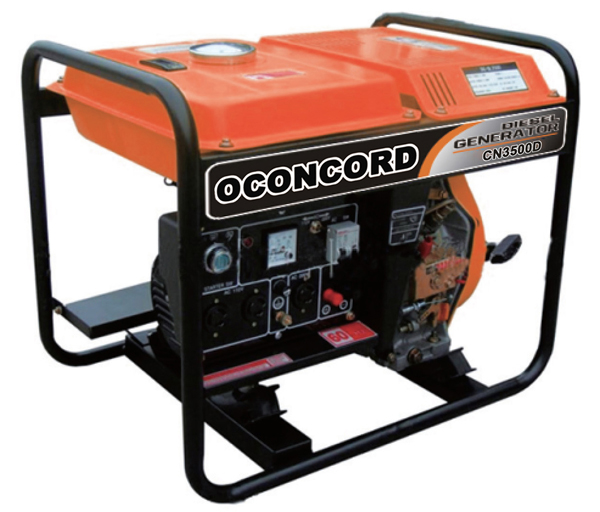

| CN3500D |
| |
 |
| |
| CN3500D |
| Generator Set |
Description |
4 Stroke 3500W Diesel Generator |
| Rated Voltage |
240 V |
120 V |
| Rated Frequency |
50 Hz |
60 Hz |
| Rated Power |
3000 W |
3300 W |
| Max Power |
3300 W |
3500 W |
| Rated Current |
12.5 A |
27.5 A |
| Rated Speed |
3000 RPM |
3600 RPM |
| Phase |
Single Phase |
| Power Factor(cosφ) |
1.0 |
| Fuel Tank Capacity |
12.0 Liters |
3.2 Gallons |
| Insulation |
F |
| Struction |
Open Frame |
| Engine |
Model |
D178F |
| Max Power |
6.0 HP/3600 rpm |
| Bore X Stroke |
78 mm X 64 mm |
| Displacement |
310 cc |
| Compression Rate |
20:1 |
| Starting System |
Recoil/Electric Start |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, Vertical |
| Fuel |
Diesel Fuel |
| Noise Level(7 m) |
66 db(A) |
| Dimension(LXWXH) |
640X480X565 mm |
| N.W./G.W. |
72.0/75.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
140 |
| Container Loading Qty 40HQ |
288 |
|
|
