| PRODUCTS |
| DIESEL GENERATOR |
| OCONCORD |
| CN14000DS |
| |
 |
| |
| CN14000DS |
| Generator Set |
Description |

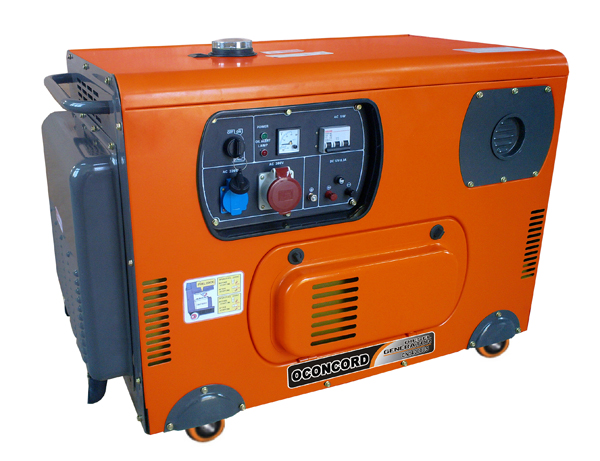

4 Stroke 14000W Diesel Generator |
| Rated Voltage |
240 V |
120 V |
| Rated Frequency |
50 Hz |
60 Hz |
| Rated Power |
10000 W |
12000 W |
| Max Power |
12000 W |
14000 W |
| Rated Current |
41.7 A |
100.0 A |
| Rated Speed |
3000 RPM |
3600 RPM |
| Phase |
Single Phase |
| Power Factor(cosφ) |
1.0 |
| Fuel Tank Capacity |
21.0 Liters |
5.6 Gallons |
| Insulation |
F |
| Struction |
Close Frame |
| Engine |
Model |
D2V86F |
| Max Power |
20.0 HP/3600 rpm |
| Bore X Stroke |
86 mm X 72 mm |
| Displacement |
836 cc |
| Compression Rate |
19:1 |
| Starting System |
Electric Start |
| Type |
4 Stroke, 2 Cylinder, Air-Cooled, V type |
| Fuel |
Diesel Fuel |
| Noise Level(7 m) |
70 db(A) |
| Dimension(LXWXH) |
1040X660X740 mm |
| N.W./G.W. |
245.0/255.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
30 |
| Container Loading Qty 40HQ |
72 |
|
|
