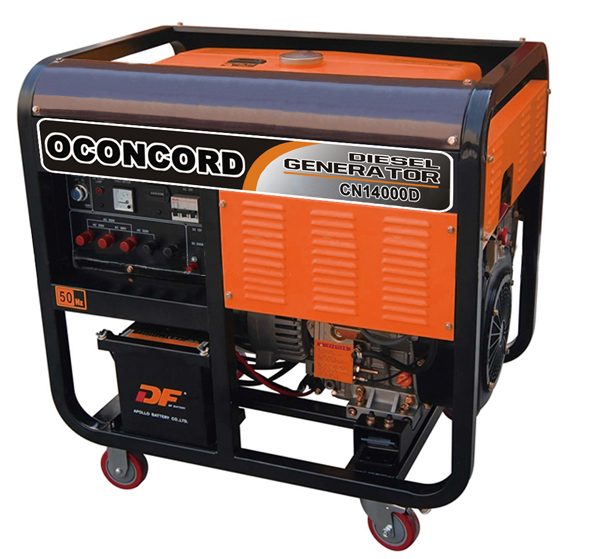

| CN14000DW |
| Generator Set |
Description |
4 Stroke 14000W Diesel Generator |
| Rated Voltage |
240 V |
120 V |
| Rated Frequency |
50 Hz |
60 Hz |
| Rated Power |
10000 W |
12000 W |
| Max Power |
12000 W |
14000 W |
| Rated Current |
41.7 A |
100.0 A |
| Rated Speed |
3000 RPM |
3600 RPM |
| Phase |
Single Phase |
| Power Factor(cosφ) |
1.0 |
| Fuel Tank Capacity |
12.0 Liters |
3.2 Gallons |
| Insulation |
F |
| Struction |
Open Frame |
| Welder |
No Load Welding Voltage(DC) |
60-85 V |
| Rated Welding Current(DC) |
180 A |
| Welding Operating Voltage(DC) |
25-50 V |
| Welding Current Adjustment |
50-210 A |
| Engine |
Model |
D2V86F |
| Max Power |
20.0 HP/3600 rpm |
| Bore X Stroke |
86 mm X 72 mm |
| Displacement |
836 cc |
| Compression Rate |
19:1 |
| Starting System |
Electric Start |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, V type |
| Fuel |
Diesel Fuel |
| Noise Level(7 m) |
82 db(A) |
| Dimension(LXWXH) |
920X670X730 mm |
| N.W./G.W. |
195.0/205.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
84 |
| Container Loading Qty 40HQ |
168 |
