| GASOLINE WATER PUMP |

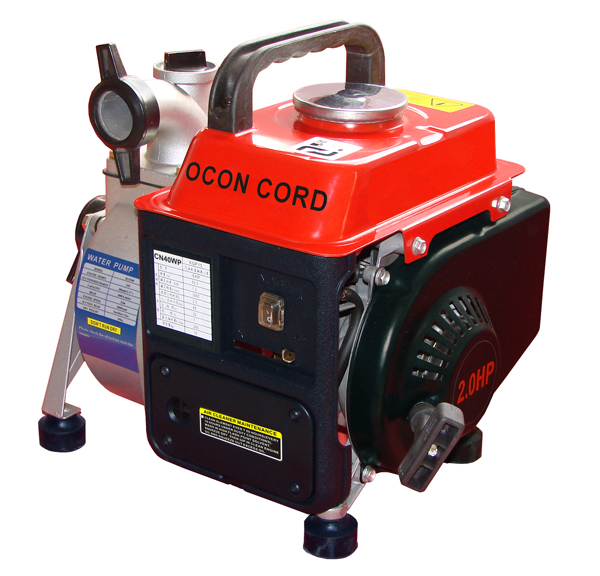

| CN40WP |
| |
 |
| |
| CN40WP |
| Water Pump |
Description |
2 Stroke 1.5" Gasoline Water Pump |
| Suction Port Diameter |
40 mm(1.5") |
| Discharge Port Diameter |
40 mm(1.5") |
| Suction Head Lift |
7 m |
| Total Head Lift |
22 m |
| Discharge Capacity |
200 L/min |
| Priming Time |
80 s/4m |
| Engine |
Model |
G1E45F |
| Max Power |
1.5 HP/3600 rpm |
| Bore X Stroke |
45 mm X 40 mm |
| Displacement |
63 cc |
| Compressor Ratio |
7:1 |
| Starting System |
Recoil Start |
| Ignition System |
C.D.I. |
| Type |
2 Stroke, Single Cylinder, Air-Cooled |
| Fuel |
Automobile Unleaded Gasoline |
| Fuel Tank Capacity |
2.0 L(0.5 Gallons) |
| Lube |
ERC 2 stroke engine oil |
| Lubricating System |
Gas to Oil: 40:1 |
| Dimension(LXWXH) |
395X320X385 mm |
| N.W/G.W |
16.0/18.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
586 |
| Container Loading Qty 40HQ |
1060 |
|
|
