| CN80WP |
| |
 |
| |
| CN80WP |
| Water Pump |
Description |

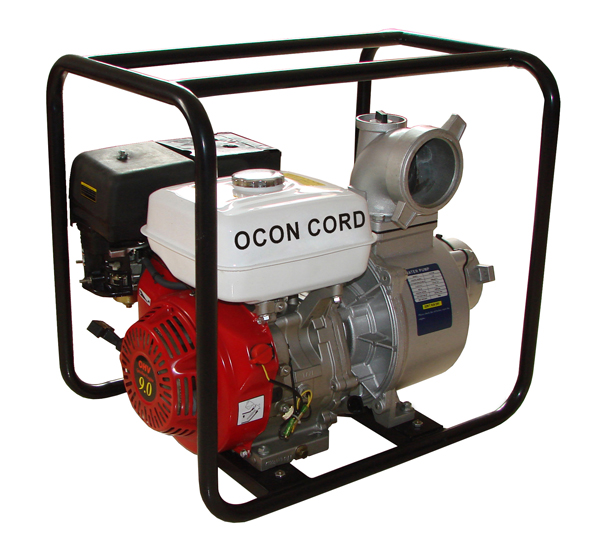

4 Stroke 3" Gasoline Water Pump |
| Suction Port Diameter |
80 mm(3") |
| Discharge Port Diameter |
80 mm(3") |
| Suction Head Lift |
8 m |
| Total Head Lift |
30 m |
| Discharge Capacity |
1000 L/min |
| Priming Time |
120 s/4m |
| Engine |
Model |
G168F |
| Max Power |
5.5 HP/3600 rpm |
| Bore X Stroke |
68 mm X 45 mm |
| Displacement |
163 cc |
| Compressor Ratio |
8.5:1 |
| Starting System |
Recoil Start |
| Ignition System |
T.C.I. |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, OHV |
| Fuel |
90# Automobile Unleaded Gasoline |
| Fuel Tank Capacity |
3.6 L(1 Gallons) |
| Lube |
SAE 10W/30 |
| Lubrication Oil Tank Capacity |
0.6 L(0.16 Gallons) |
| Dimension(LXWXH) |
530X410X470 mm |
| N.W/G.W |
22.5/28.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
305 |
| Container Loading Qty 40HQ |
720 |
|
|
