| PRODUCTS |
| WATER PUMP |
| GASOLINE WATER PUMP |

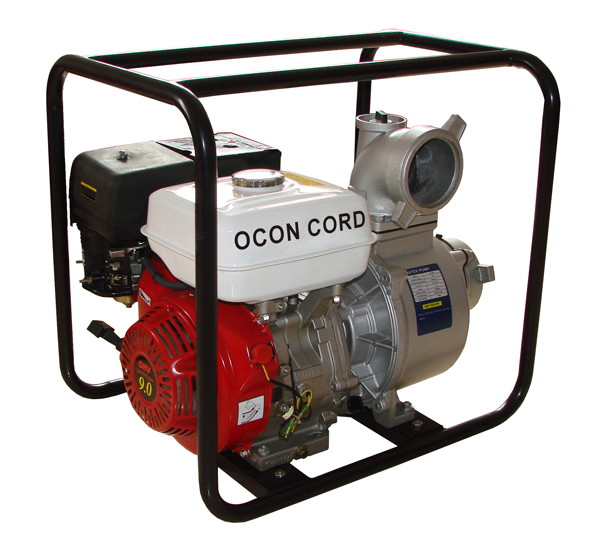

| CN100WP |
| |
 |
| |
| CN100WP |
| Water Pump |
Description |
4 Stroke 4" Gasoline Water Pump |
| Suction Port Diameter |
100 mm(4") |
| Discharge Port Diameter |
100 mm(4") |
| Suction Head Lift |
8 m |
| Total Head Lift |
28 m |
| Discharge Capacity |
1800 L/min |
| Priming Time |
80 s/4m |
| Engine |
Model |
G177F |
| Max Power |
9.0 HP/3600 rpm |
| Bore X Stroke |
77 mm X 58 mm |
| Displacement |
270 cc |
| Compressor Ratio |
8.2:1 |
| Starting System |
Recoil Start |
| Ignition System |
T.C.I. |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, OHV |
| Fuel |
90# Automobile Unleaded Gasoline |
| Fuel Tank Capacity |
6.0 L(1.6 Gallons) |
| Lube |
SAE 10W/30 |
| Lubrication Oil Tank Capacity |
1.1 L(0.3 Gallons) |
| Dimension(LXWXH) |
630X475X615 mm |
| N.W/G.W |
47.5/50.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
126 |
| Container Loading Qty 40HQ |
352 |
|
|
