| PRODUCTS |
| WATER PUMP |
| DIESEL WATER PUMP |
| CN50DWP |
| |
 |
| |
| CN50DWP |
| Water Pump |
Description |

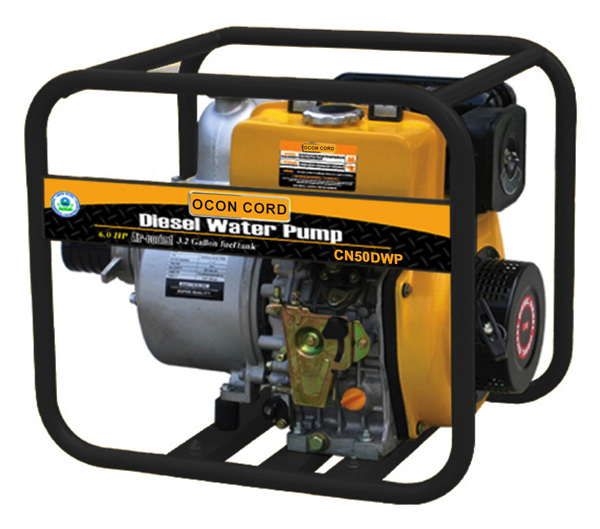

4 Stroke 2" Diesel Water Pump |
| Suction Port Diameter |
50 mm(2") |
| Discharge Port Diameter |
50 mm(2") |
| Suction Head Lift |
8 m |
| Total Head Lift |
26 m |
| Discharge Capacity |
700 L/min |
| Priming Time |
70 s/4m |
| Engine |
Model |
D170F |
| Max Power |
4.0 HP/3600 rpm |
| Bore X Stroke |
70 mm X 57 mm |
| Displacement |
220 cc |
| Compressor Ratio |
20:1 |
| Starting System |
Recoil Start |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, Vertical |
| Fuel |
Diesel Fuel |
| Fuel Tank Capacity |
2.5 L(0.6 Gallons) |
| Dimension(LXWXH) |
485X435X500 mm |
| N.W/G.W |
38.0/39.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
138 |
| Container Loading Qty 40HQ |
288 |
|
|
