| PRODUCTS |
| WATER PUMP |
| DIESEL WATER PUMP |
| CN100DWP |
| |
 |
| |
| CN100DWP |
| Water Pump |
Description |

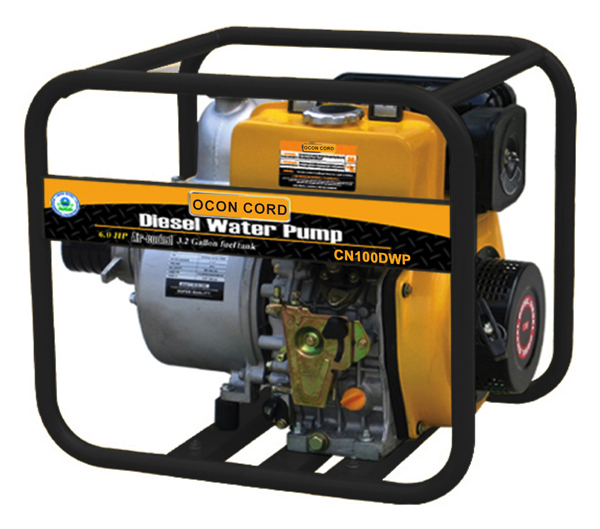

4 Stroke 4" Diesel Water Pump |
| Suction Port Diameter |
100 mm(4") |
| Discharge Port Diameter |
100 mm(4") |
| Suction Head Lift |
8 m |
| Total Head Lift |
31 m |
| Discharge Capacity |
1600 L/min |
| Priming Time |
180 s/4m |
| Engine |
Model |
D186F |
| Max Power |
10.0 HP/3600 rpm |
| Bore X Stroke |
86 mm X 72 mm |
| Displacement |
420 cc |
| Compressor Ratio |
19:1 |
| Starting System |
Recoil Start |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, Vertical |
| Fuel |
Diesel Fuel |
| Fuel Tank Capacity |
5.5 L(1.5 Gallons) |
| Dimension(LXWXH) |
655X480X720 mm |
| N.W/G.W |
47.5/50.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
105 |
| Container Loading Qty 40HQ |
218 |
|
|
