| PRODUCTS |
| WATER PUMP |
| DIESEL WATER PUMP |
| CN80DWP |
| |
 |
| |
| CN80DWP |
| Water Pump |
Description |

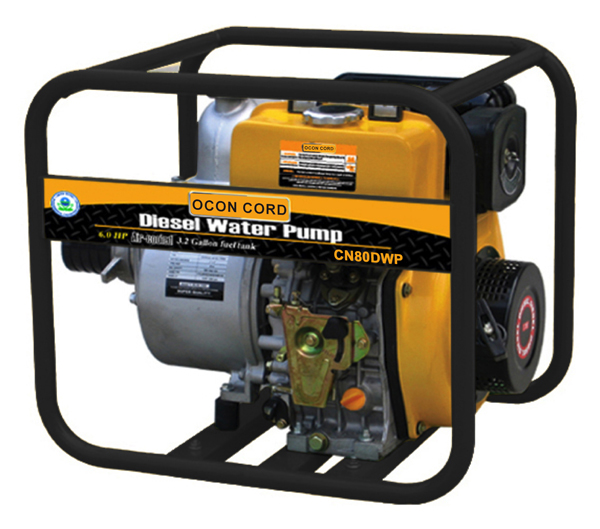

4 Stroke 3" Diesel Water Pump |
| Suction Port Diameter |
80 mm(3") |
| Discharge Port Diameter |
80 mm(3") |
| Suction Head Lift |
8 m |
| Total Head Lift |
31 m |
| Discharge Capacity |
1000 L/min |
| Priming Time |
120 s/4m |
| Engine |
Model |
D178F |
| Max Power |
6.0 HP/3600 rpm |
| Bore X Stroke |
78 mm X 64 mm |
| Displacement |
310 cc |
| Compressor Ratio |
20:1 |
| Starting System |
Recoil Start |
| Type |
4 Stroke, Single Cylinder, Air-Cooled, Vertical |
| Fuel |
Diesel Fuel |
| Fuel Tank Capacity |
3.6 L(1 Gallons) |
| Dimension(LXWXH) |
570X470X650 mm |
| N.W/G.W |
47.0/48.0 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
138 |
| Container Loading Qty 40HQ |
288 |
|
|
