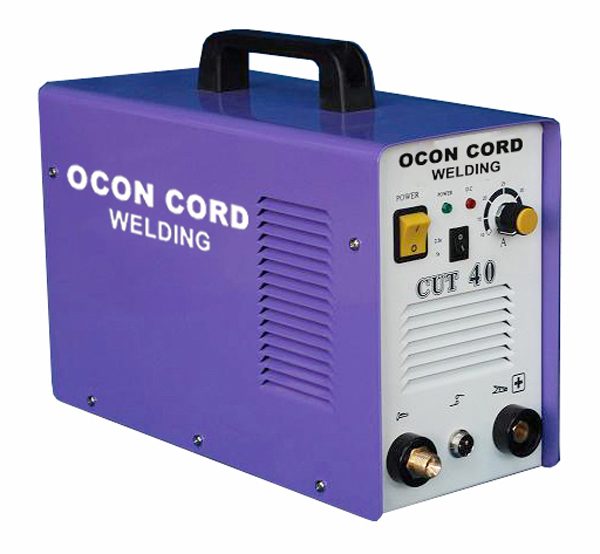

| CUT40 |
| |
 |
| |
| CUT40 |
| Description |
Plasma Cutter |
| Input Power Voltage |
AC220V ± 10% |
| Rated Input Power Capacity |
6.6 KVA |
| No Load Voltage |
230 V |
| Current Range |
10 - 40 A |
| Rated Duty Cycle |
60% |
| Efficiency |
80% |
| Power Factor COSΦ |
0.73 |
| Insulation Class |
F |
| Protection Class of Case |
IP21 |
| Arc-starting |
Touch /HF |
| Max Thickness |
12 mm |
| Dimension(LXWXH) |
450X270X345 mm |
| N.W/G.W |
9 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
630 |
| Container Loading Qty 40HQ |
1540 |
|
|
