| PRODUCTS |
| WELDER |
| OCONCORD |

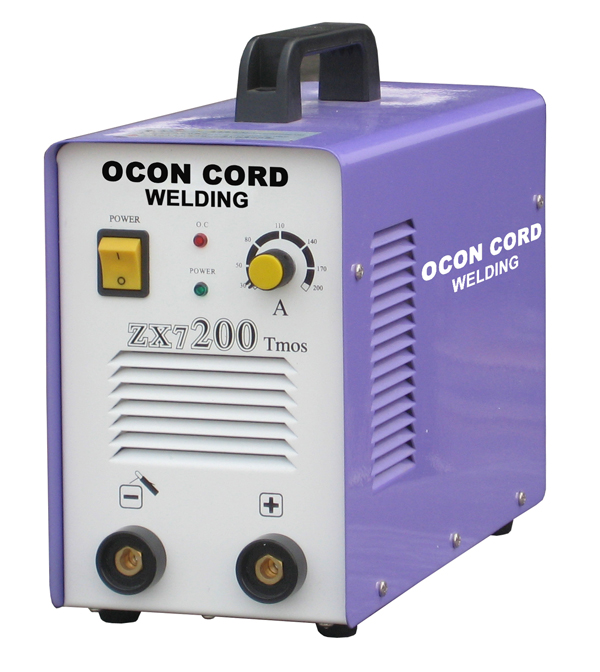

| ZX7 200 |
| |
 |
| |
| ZX7 200 |
| Description |
DC Invert MMA Welder |
| Input Power Voltage |
AC220V ± 15% |
| Rated Input Power Capacity |
7.8 KVA |
| No Load Voltage |
58 V |
| Current Range |
29 - 200 A |
| Rated Duty Cycle |
60% |
| Efficiency |
80% |
| Power Factor COSΦ |
0.73 |
| Insulation Class |
F |
| Protection Class of Case |
IP21 |
| Arc-starting |
Touch /HF |
| Max Thickness |
6 mm |
| Dimension(LXWXH) |
450X270X345 mm |
| N.W/G.W |
9 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
630 |
| Container Loading Qty 40HQ |
1540 |
|
|
