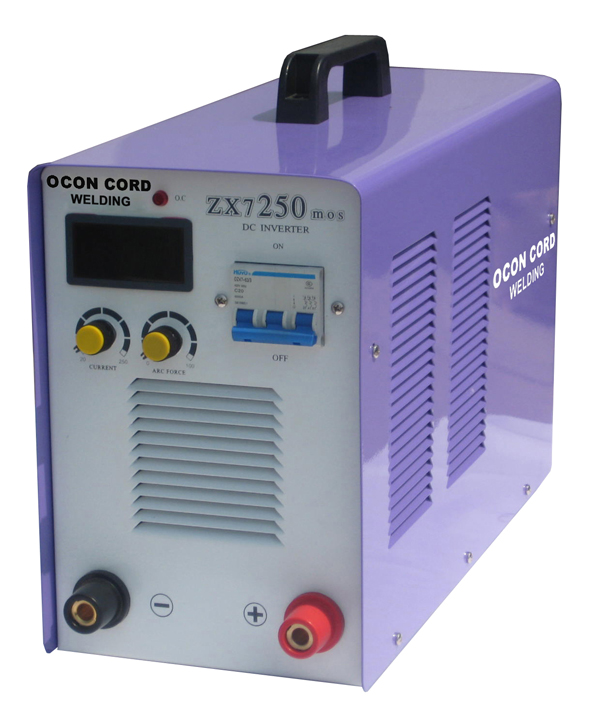

| ZX7 250 |
| |
 |
| |
| ZX7 250 |
| Description |
DC Invert MMA Welder |
| Input Power Voltage |
AC380V ± 15% |
| Rated Input Power Capacity |
12.8 KVA |
| No Load Voltage |
66 V |
| Current Range |
20 - 250 A |
| Rated Duty Cycle |
60% |
| Efficiency |
85% |
| Power Factor COSΦ |
0.93 |
| Insulation Class |
F |
| Protection Class of Case |
IP21 |
| Arc-starting |
Touch /HF |
| Max Thickness |
8 mm |
| Dimension(LXWXH) |
583X316X420 mm |
| N.W/G.W |
17.5 kgs |
| Piece per Carton |
1 pc/ctn |
| Container Loading Qty 20GP |
335 |
| Container Loading Qty 40HQ |
864 |
|
|
